STREETS AND CURBS EATER

Racing look, 4 valves liquid cooled engine with electronic injection and driving position refined on racetrack allow you to face every situation riding your SMX supermotard with maximum agility. Finding the most winding roads after school or going to racetrack on Sundays will not be a problem for you.


Notice: Undefined index: thumbnail in /web/htdocs/www.fbmondial.com/home/wp-content/plugins/noor_assistant/include/shortcodes/dima_image.php on line 178
alt=""

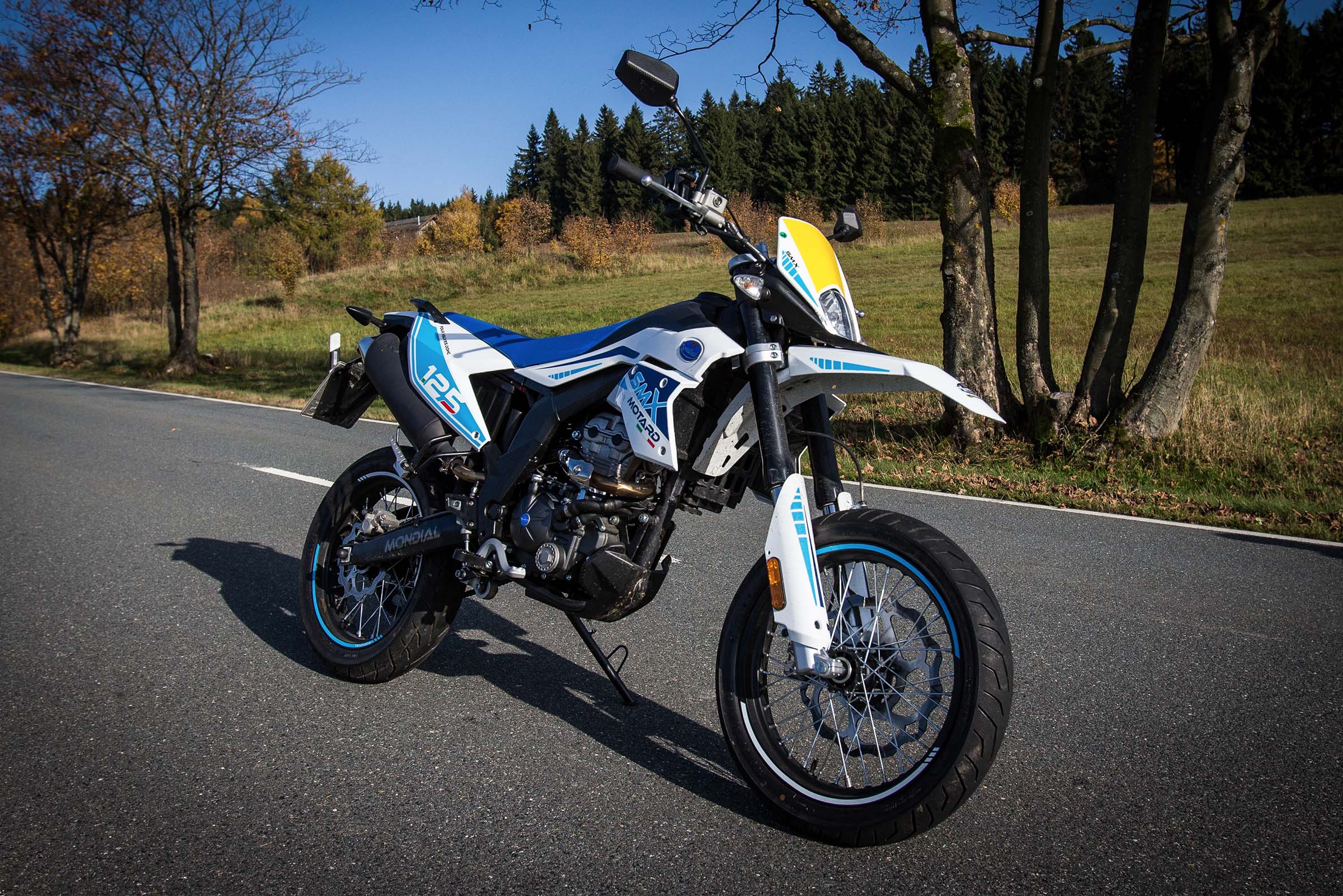

Supermotard version. Racing will not be scary for anyone.
The high center of gravity allows better agility both on track and in the traffic jams. After school trip will become the constant research for the narrowest hairpin.
17 inch wheels will help you to test your limits.
11kW! The engine, 4 valves with electronic injection, is one of the few in the world who can grant the maximum power allowed by law for A1 license.

TypeSingle cylinder, 4 stroke, DOHC, 4 valves
Displacement



124 cm3
Bore x Stroke58×47 mm
 Compression ratio12,0:1
Max Power11.0 kW at 10750 rpm
Max Torque11.0 Nm at 8000 rpm
 LubricationWet sump
 Cooling system Liquido



Liquid
Intake systemEFI
 Starting systemElectric starter
 Transmission6 speed
Fuel tank6,3 L

Front suspension 40 mm Ø 41 mm fork, 247 mm
Rear suspensionSingle shock Absorber  (270 mm)
Mass in running order124 kg
Seats2
Front brake 2 pistons floating caliper  ABS/CBS 300 mm
Rear brake 1 piston floating caliper ABS/CBS 220 mm
 Front wheel2,50 x 17”
Rear wheel3,50 x 17”
 Front tyre100/80 x 17”
Rear tyre130/70 x 17”
ColorsWhite Red
White Blue

Length2080 mm
Width825 mm
Height



1180 mm
Wheelbase1425 mm
Ground clearance250 mm
Seating position height980 mm
